Medical Part Injection Molding

Medical parts injection molding: This is a set of injection molding products used in medical electrical equipment. This type of product is mainly concentrated in medical equipment. Many foreign companies that develop and manufacture medical equipment have a relatively large demand. Does your company need this type of product? Welcome to consult us: qxwmould_co_ltd@163.com. Problem, flange specifications and functions: When the mold is installed on the injection molding machine, it is convenient to align the sprue sleeve with the nozzle of the injection molding machine.

Material: 1040 STL (Ace).

Diameter: American AISI Ø3.990 / Ø4.000"+ 0,-0.010"

European DIN Ø100/110/125mm+ 0,-0.20mm

Precautions:

The supporting flange (Figure 3.3) is used for the small nozzle/three-plate mold, and the function is to use the injection molding machine's bottom plate to eliminate the back pressure when the glue is injected.

Force without breaking the flange screws.

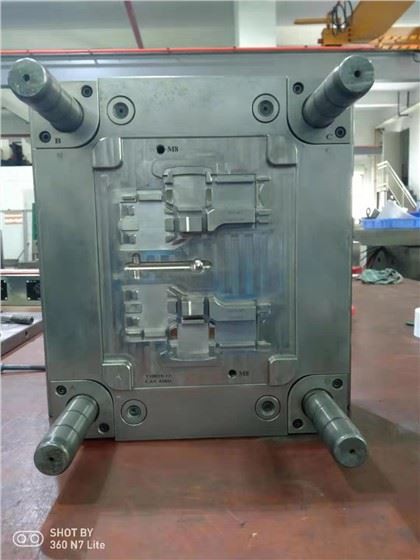

Mould Name: Custom Plastic Mould

Part Material: PPC-T20

Product Size:  91.14X161.85X26.21mm

Product Description:  Medical Part Injection Molding

Mould Cavity: 1 cavities

Mould Size: 250*300*313 MM

Mould Cavity Steel: P20

Mould Injection System: Cold runner/tunnel gate

Mould Ejection System: ejector pin

Mould Cycle Time: 40s

Mould Life Cycle: 200,000

Lead Time: 35 working days

Mold export to: Europe
